Place of Origin:
China
Brand Name:
China CT
Certification:
SGS
Model Number:
Workshop86701

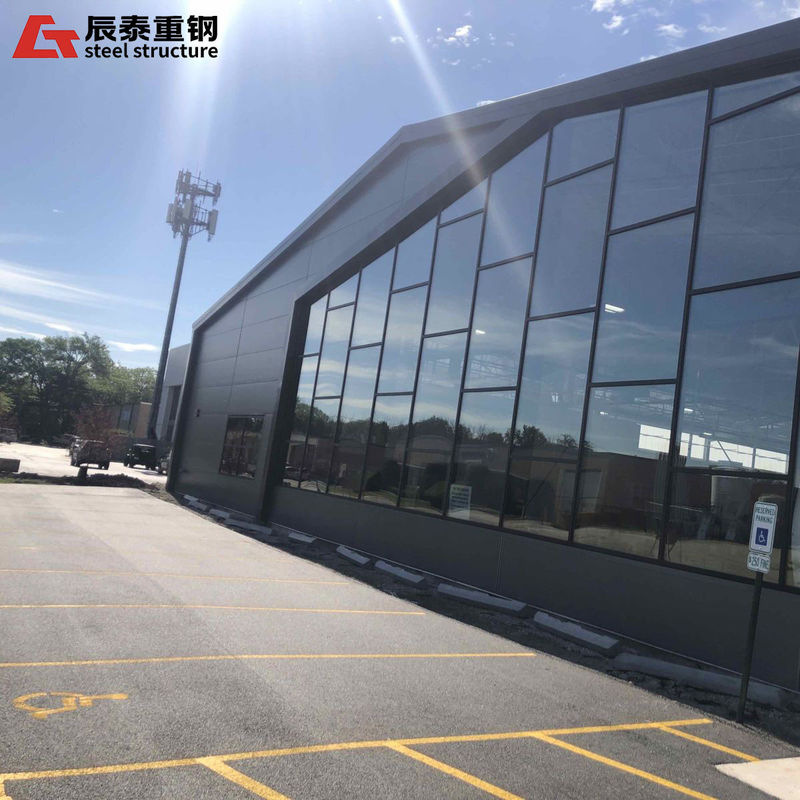

The Steel Structure Workshop represents a modern, innovative solution for industrial construction needs. This Pre-Engineered Building (PEB) system combines durability, versatility, and rapid installation capabilities to meet the demands of today's fast-paced construction industry.

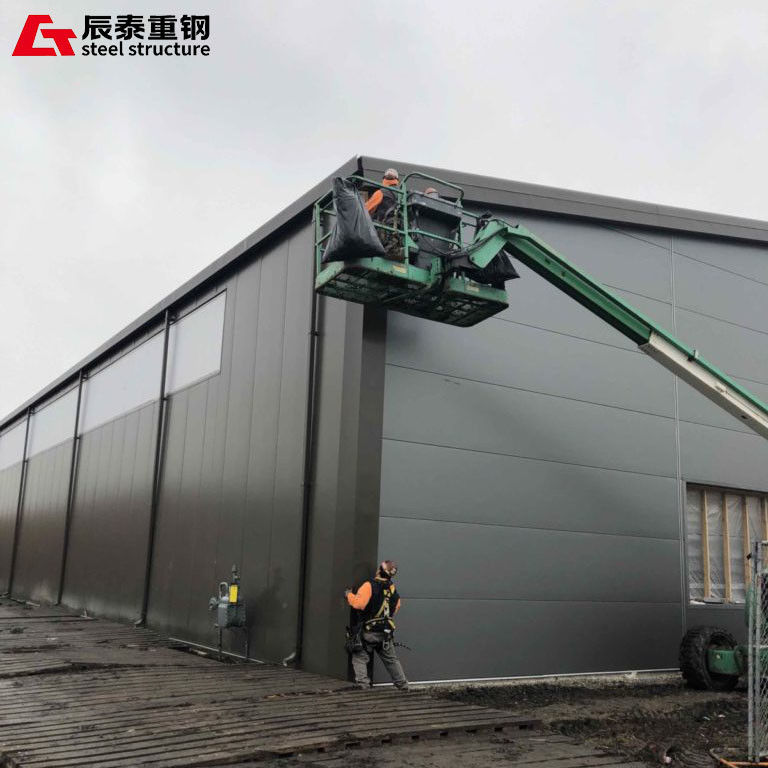

Crafted using high-quality steel components, these workshops ensure superior strength, corrosion resistance, and longevity. The modular design allows for quick assembly on-site, significantly reducing construction time and costs while maintaining exceptional quality standards.
| Attribute | Specification |
|---|---|
| Secondary Frame | Hot Dipped Galvanized Purlin |
| Color | Customized |
| Application Field | Warehouse Workshop Office Storage |
| Structural Form | Grid steel structure |
| Main Design Parameter | Wind Load, Snow Load and Earthquake |
| Product Type | Workshop |
| Wall Type | Single Skin/Insulated Sandwich Panel |
| Wind Resistance | Up to 180km/h |
| Size | Customizable |
| Material | Steel |
| Surface Treatment | Painting/Galvanizing |
| Wind Load | 200 Km/h |
| Parameter | Specification |
|---|---|
| Material | Galvanized steel |
| Frame Type | Pre-engineered steel structure |
| Span Range | 12m - 60m |
| Height Range | 6m - 24m |
| Roof Slope | 1:10 to 1:30 |
| Load Capacity | Wind load: up to 150 km/h Snow load: up to 70 kg/m² |
| Coating Thickness | Zinc coating: ≥275 g/m² |
| Fire Resistance | Up to 2 hours (with additional fireproofing) |
| Color Options | Customizable (RAL colors available) |
| Insulation Option | Optional rock wool or polyurethane panels |
The steel structure warehouse offers advantages of light weight, short construction period, and strong seismic resistance. Its rapid installation enhances the development of logistics operations, providing efficient storage solutions.

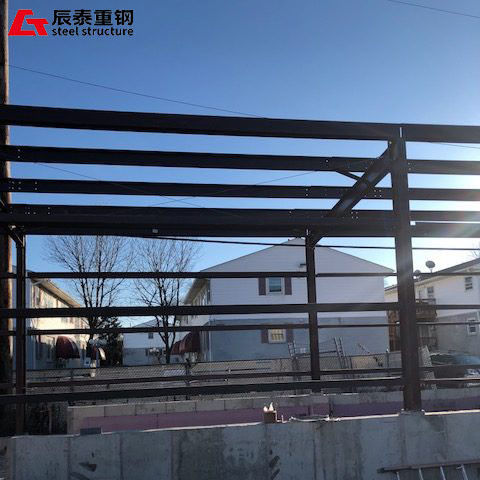

Composed of floor slabs, primary and secondary beams, columns, and supports, these structures can be designed with 6-8 meter spans between columns. With bearing capacity of 600-1000kg per square meter, they maximize space utilization while allowing forklift operations beneath platforms.
Ideal for facilities requiring both storage and processing functions. Suitable for agricultural products, livestock, medicinal materials, and other goods needing sorting, processing, packing, and storage before shipment.
