Place of Origin:
China
Brand Name:
China CT
Certification:
SGS
Model Number:
Workshop86702

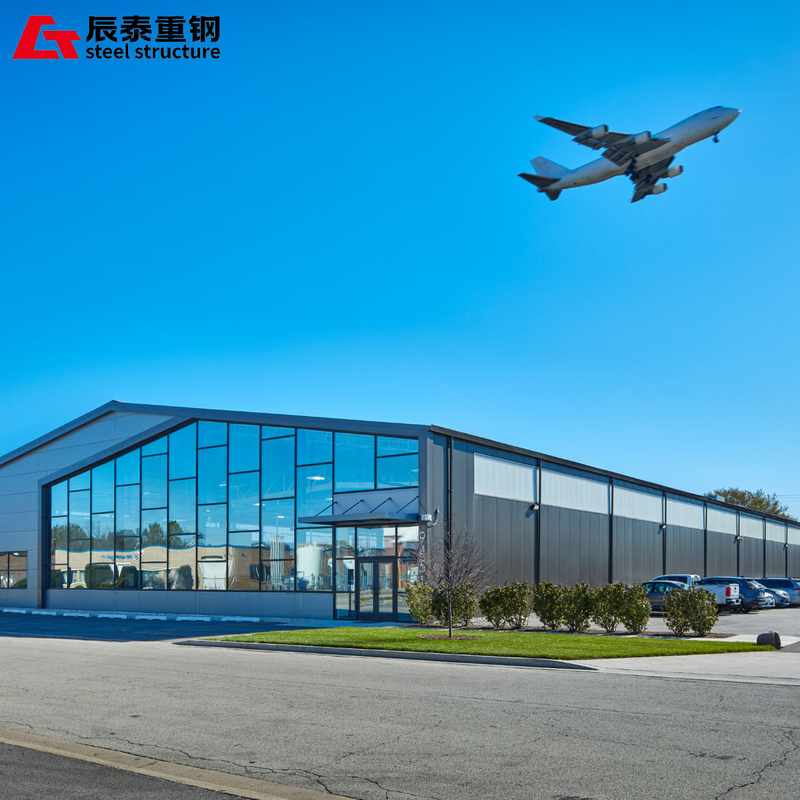

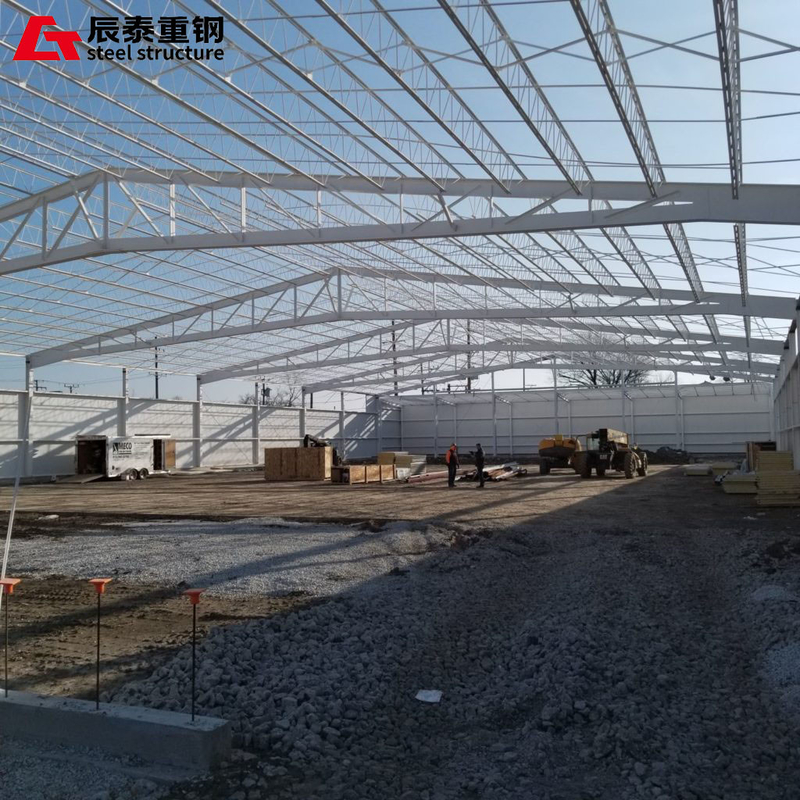

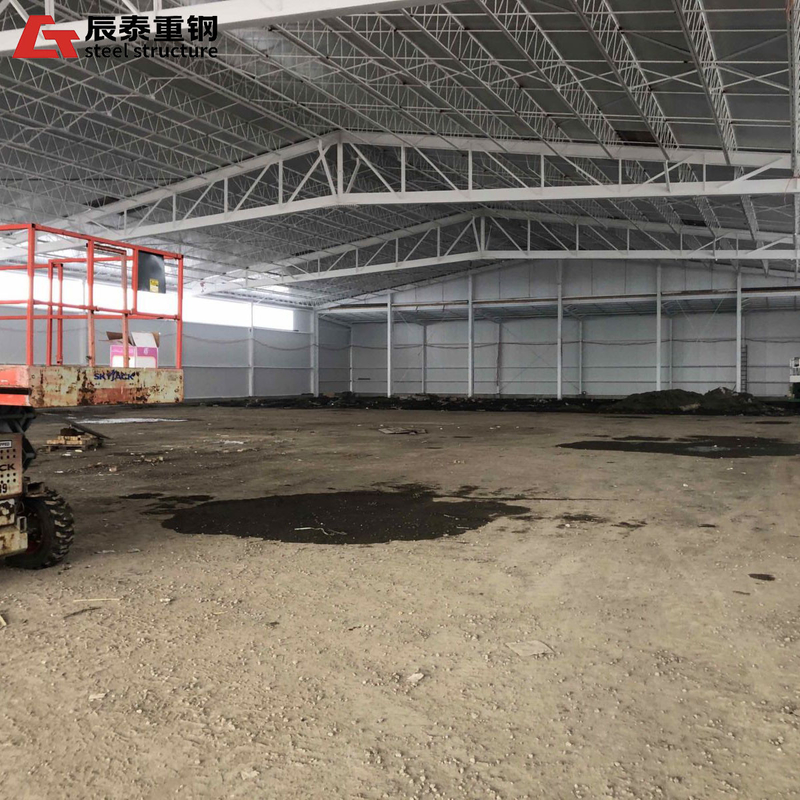

This professional steel structure building with portal crane system is engineered for heavy-duty industrial operations. Designed for manufacturing facilities, warehouses, and large-scale industrial applications, it offers exceptional load-bearing capacity, durability, and quick installation while maintaining structural integrity.
| Parameter | Value/Range |
|---|---|
| Structure Type | Steel Frame Portal System |
| Span (m) | 12 - 60 |
| Height (m) | 6 - 30 |
| Column Spacing (m) | 6 - 9 |
| Roof Slope (%) | 1/10 - 1/20 |
| Crane Capacity (t) | Up to 200 tons |
| Wind Load (kN/m²) | Up to 0.8 |
| Snow Load (kN/m²) | Up to 1.5 |
| Seismic Resistance | Zone 8 (Per Chinese Standards) |
| Material Grade | Q235B/Q355B |
| Coating Thickness | Epoxy Primer + Zinc-Rich Topcoat |
