Place of Origin:
china
Brand Name:
CT Steel Structure
Model Number:
industrial steel structure
| Attribute | Value |
|---|---|
| Construction Time | Short |
| Type | H-Section Steel |
| Advantage | Fast Install |
| Material | Steel |
| Secondary Struct | Galvanized Purlin, Supporting Part |
| Structure Type | Steel Structure |

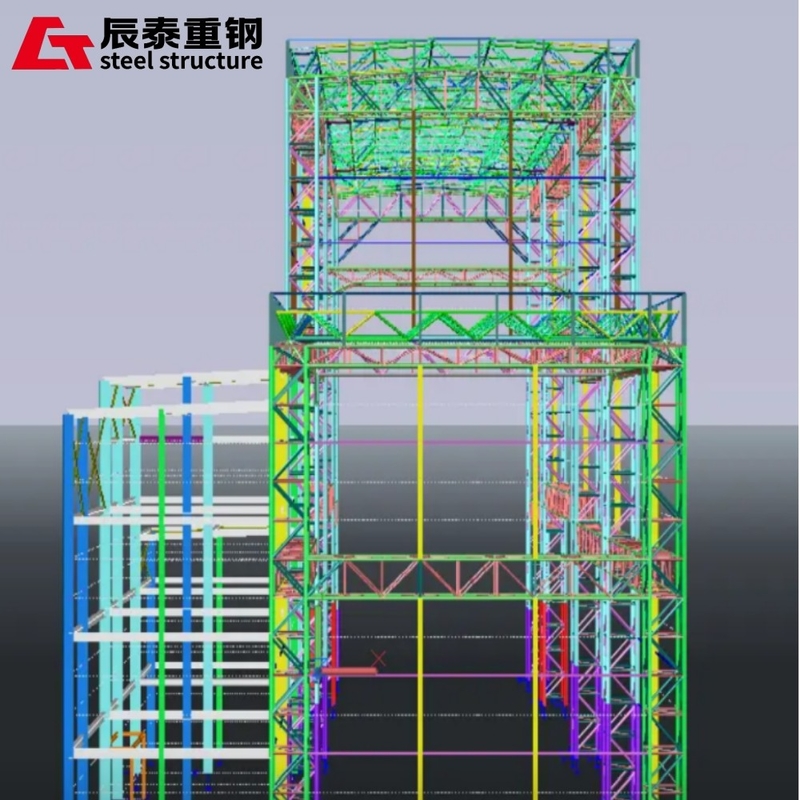

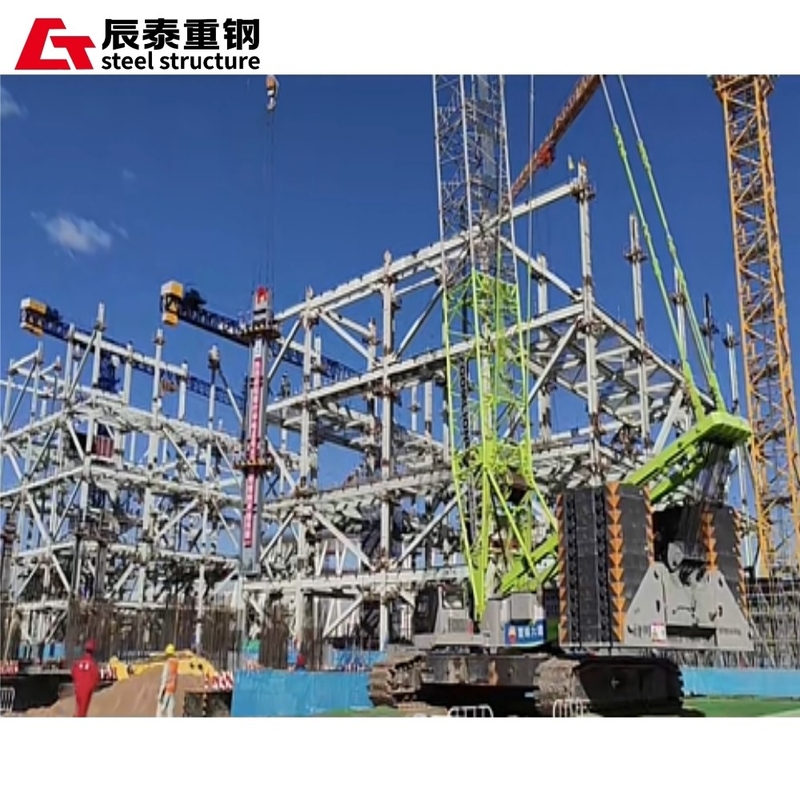

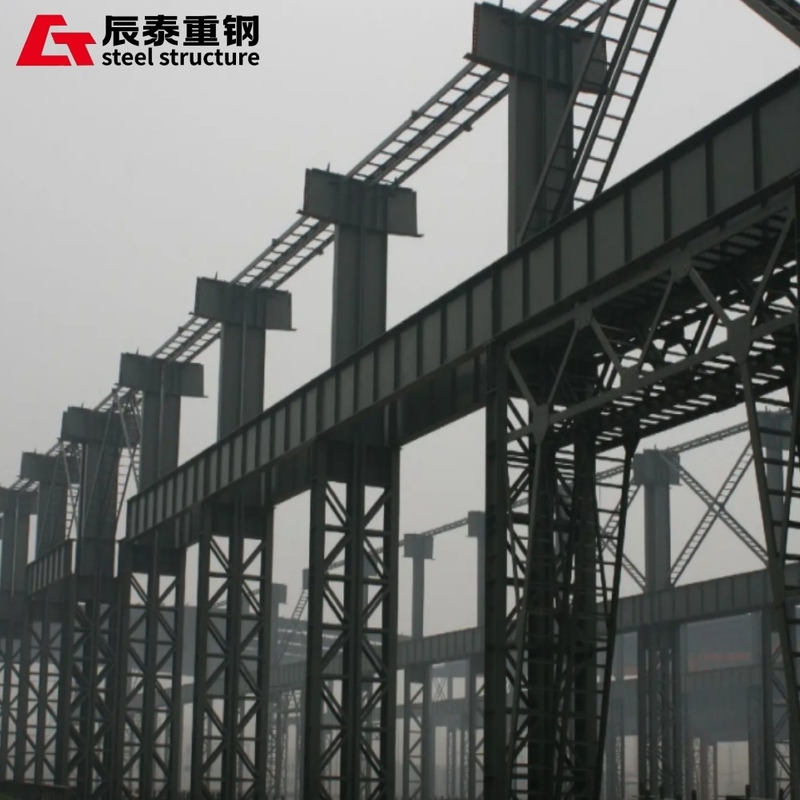

This steel structural frame provides specialized support for core power generation equipment in power stations, including steam turbines and generators. Designed according to equipment weight, size, and operational requirements, these support platforms combine thick steel plates with large steel beams for exceptional load-bearing capacity and stability.
| Steel Frame | H section column and beam - Q345 steel, paint or galvanization Wind resistant column - Q345 steel, paint or galvanization |
| Secondary Bracing |
Roof purlin - Q235B C/Z section galvanized steel Wall purlin - Q235B C/Z section galvanized steel Tie bar - Q235,φ89*3 round steel pipe Knee brace - angle steel,Q235,L50*4 Roof horizontal bracing - φ20,Q235B steel bar, paint or galvanized Column vertical bracing - φ20,Q235B steel bar, paint or galvanized Casing pipe - φ32*2.0,Q235 steel pipe Pulling bar - Φ10 round bar Q235 |
| Roof and Wall Protection |
Wall and roof panel - corrugated steel sheet/sandwich panel Gutter - color steel sheet/galvanized steel/stainless steel Trim and flashing - color steel sheet Downspout - PVC Self tapping screw |
| Fastener System |
Anchor bolts - Q235 steel High strength bolt - Specifications determined by steel structure design Normal bolt Nuts |
| Window and Door |
Window - Aluminium windows Door - Various options including EPS door, windproof door, high-speed roll-up door, industrial sliding door |
Fire Protection Performance: While steel doesn't burn, its mechanical properties decrease at high temperatures. Our steel structures feature fire-retardant coatings that expand when exposed to fire, creating thermal insulation that delays steel heating. This provides crucial time for evacuation and firefighting, significantly enhancing power station safety.
Superior Corrosion Resistance: Designed for complex power station environments with high humidity and chemical exposure, our steel undergoes multi-layer anti-corrosion treatment including rust removal, primer coating, intermediate paint and topcoat. This creates a durable protective barrier that extends structure lifespan while reducing maintenance costs.
Offshore Wind Power Generation: Our steel structures meet the extreme demands of offshore environments, serving as jackets and single pile foundations for wind turbines. Specially treated for high-humidity, high-salinity conditions, they provide strong bearing capacity against waves and currents. The rapid construction advantage is particularly valuable for offshore operation and maintenance bases.
Onshore Wind Power Generation: Widely used in wind farm booster stations, our steel frames provide stable platforms for transformers and distribution equipment. The flexible spatial layout accommodates monitoring equipment and office facilities, enabling effective wind farm management. Some wind turbine towers also utilize our lightweight, high-strength steel structures for easier transportation and installation.
Established in 2004, China CT Steel Structure Group is a comprehensive industrial group specializing in steel structure R&D, design, manufacturing, and installation. Our 30-hectare facility produces 200,000 tons of steel structures annually with a workforce of 500+ employees, including 100+ professional designers and service teams.
With 30 specialized production lines, we deliver industrial and civil buildings including factories, warehouses, high-rises, offices, exhibition halls, sports facilities, parking structures, prefabricated buildings, and agricultural projects. We're committed to exceeding customer expectations through innovative steel structure solutions.
