Place of Origin:
China
Brand Name:
CT Steel Structure
Certification:
SGS
Model Number:
Office 96601
| Attribute | Value |
|---|---|
| Name | Steel Frame Office Building |
| Raw Material | Q235B, Q345B, Q420B |
| Steel Grade | Q235B, Q345B, Q420B |
| Fabrication Certificate | ISO3834, EN1090-2 |
| Design Software | Tekla |
| Usage | Commercial |
| Bolts For Connection | 4.8S, 6.8S, 8.8S |
| Treatment Of Surface | Hot-dip Galvanized, Painted |
| Strength | Strong |
| Material | Steel |

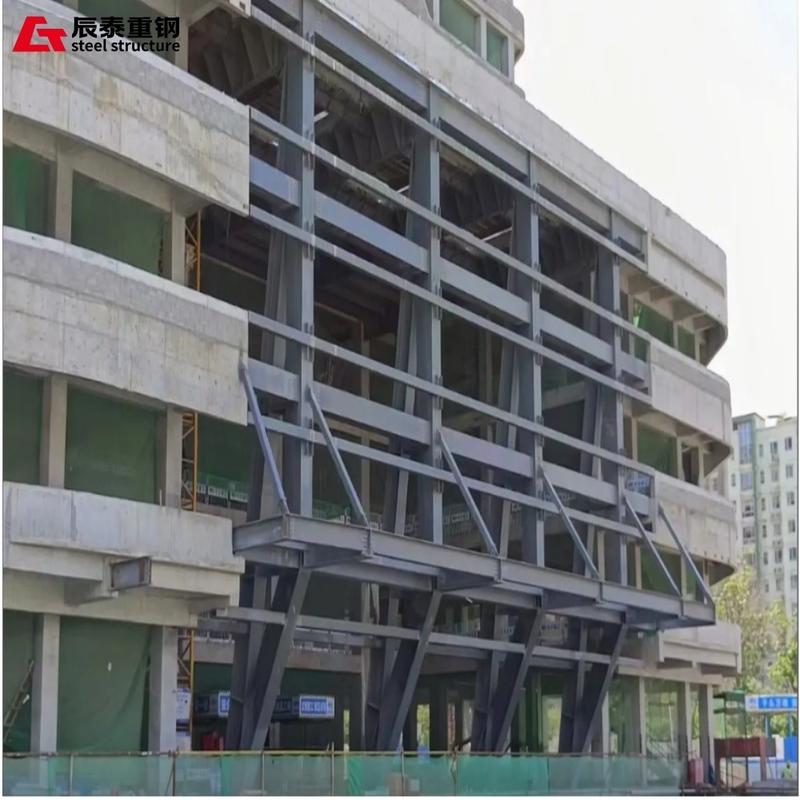

The steel structure office building uses steel as the main load-bearing component, demonstrating the efficiency and practicality of modern architecture. Tall steel columns and sturdy steel beams form a stable skeleton that carries the weight and activity load of each floor. Its construction adopts the method of factory prefabrication and on-site assembly, which greatly shortens the construction period and allows enterprises to quickly settle in the office.
| Material | Specification | Usage |
|---|---|---|
| Hot Rolled H-Beam | Cross-sectional dimensions determined according to architectural design | Used to construct steel beams and columns, bearing main vertical and horizontal loads |
| Welded H-Beam | Customized to meet special cross-sectional requirements | Suitable for parts with special requirements for steel performance or complex structures |
| Channel Steel | Common specifications such as 8#, 10#, 12# | Used for auxiliary support structures and construction of secondary components |
| Angle Steel | Unequal-leg angle steel such as L50×32×4, equal-leg angle steel such as L40×4 | Connect and reinforce component joints, enhance structural stability |
| Steel Plate | Thickness ranging from 3mm to 50mm | Used to make gusset plates and stiffeners |
| High-Strength Bolts | Grade 8.8, Grade 10.9 | Connect key joints to ensure structural integrity |
Package Size: 100.00cm × 100.00cm × 100.00cm
Package Gross Weight: 100.000kg
China CT Steel Structure Co.,Ltd of BY GROUP is a comprehensive industrial group specializing in steel structure design, manufacture and installation with over 21 years of experience. Our 30-hectare factory produces a wide range of steel structures including warehouses, workshops, high-rise buildings, schools, hotels, and office buildings.
We prioritize quality and service, offering efficient packaging solutions that save time and labor costs during unloading. Our detailed material lists and container loading plans ensure smooth project execution.
