Place of Origin:
China
Brand Name:
CT Steel Structure
Certification:
SGS
Model Number:
Office 96601

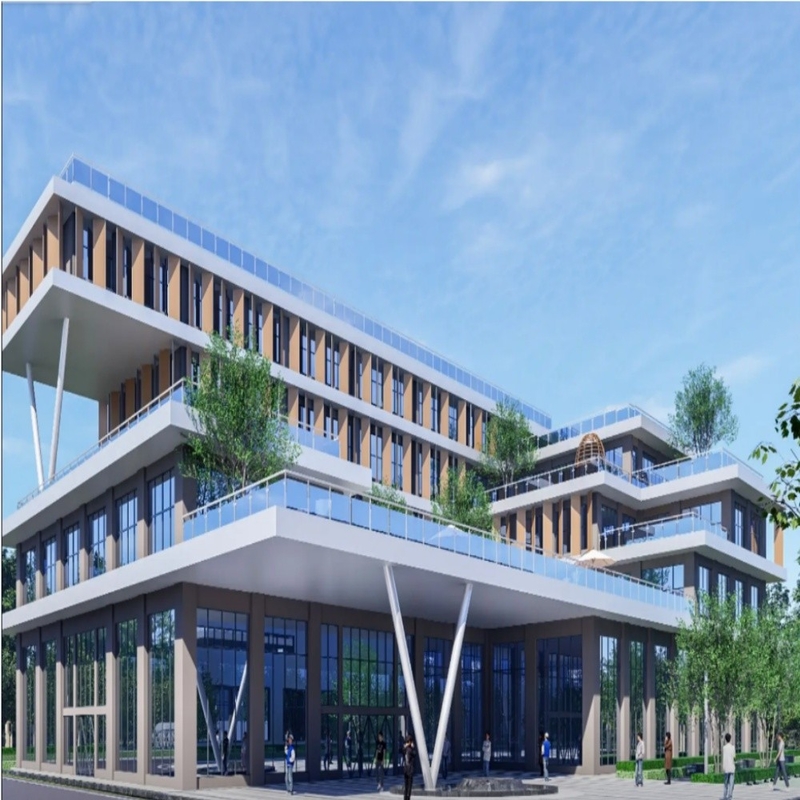

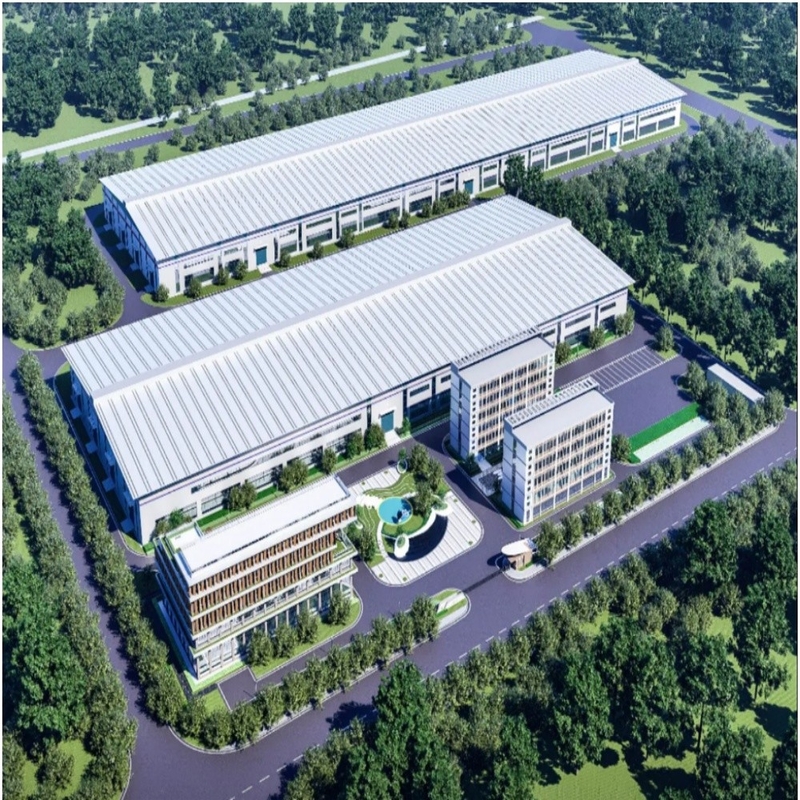

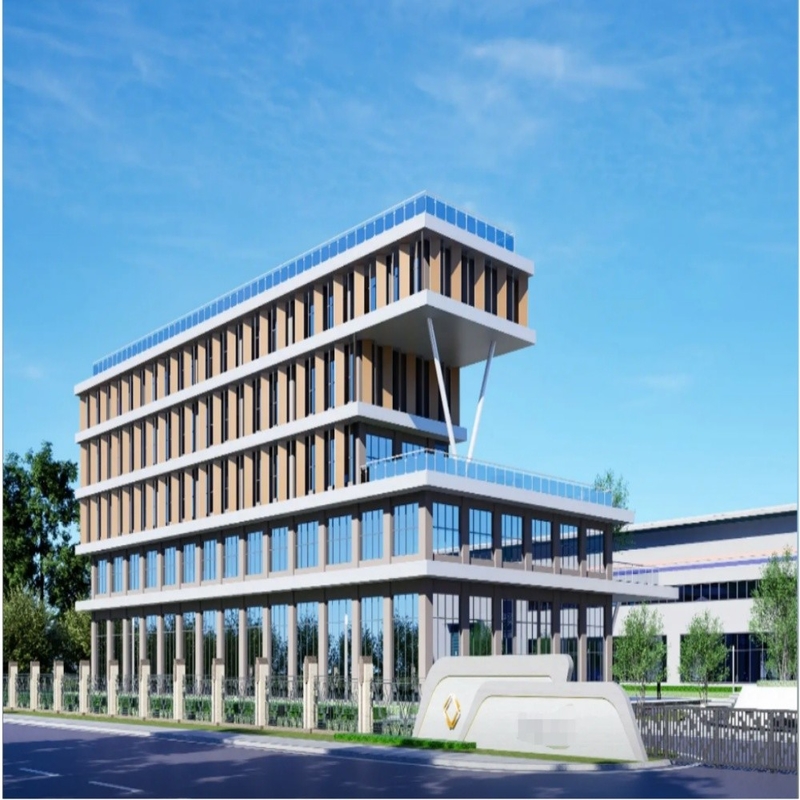

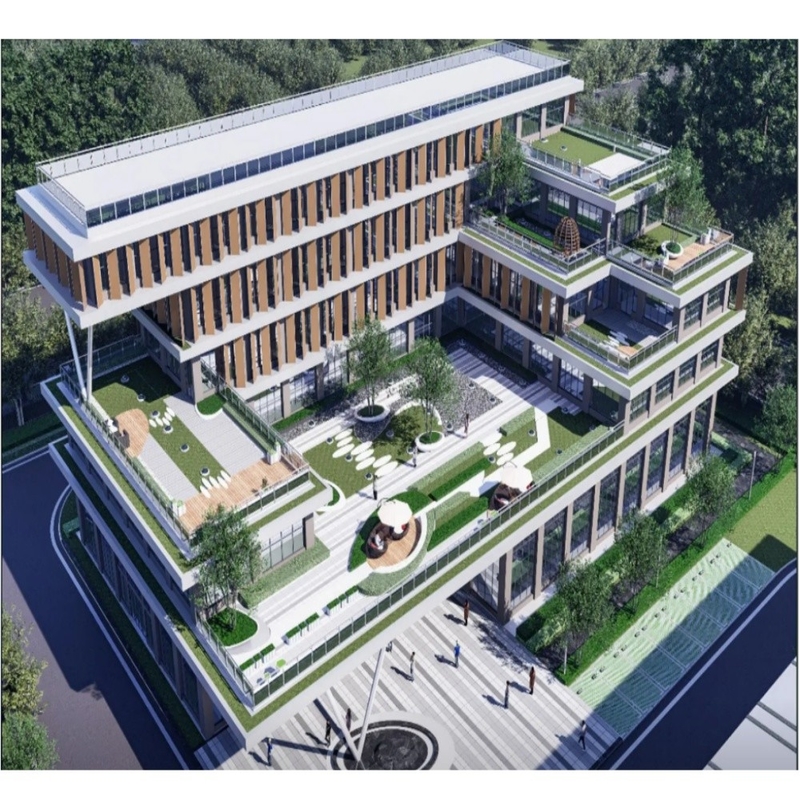

Modular steel frame workshop buildings designed for commercial and office use with customizable configurations.
| Attribute | Value |
|---|---|
| Name | Steel Structure Office Building |
| Weight | Light Weight |
| Stiffness | Excellent Overall Stiffness |
| Design | Customized |
| Surface Treatment | Hot-dip Galvanized, Painted |
| Raw Material | Q235B, Q345B, Q420B |
| Maintenance | Low |
| Design Software | Tekla |
| Material | Specification | Usage |
|---|---|---|
| Hot Rolled H-Beam | Custom dimensions (e.g., 300×300×10×15) | Primary load-bearing beams and columns |
| Welded H-Beam | Custom cross-sections | Special performance requirements |
| Channel Steel | 8#, 10#, 12# | Secondary support structures |
| Angle Steel | L50×32×4, L40×4 | Joint connections and reinforcement |
| Steel Plate | 3mm to 50mm thickness | Gusset plates and stiffeners |
Steel structures offer superior strength-to-weight ratios compared to traditional materials, enabling robust frames that withstand earthquakes and high winds. The material's ductility effectively absorbs seismic energy, enhancing building safety in disaster-prone areas.
Despite steel's density, optimized cross-sections reduce overall weight by 30-50% versus concrete, lowering foundation requirements and simplifying construction. This efficiency accelerates project timelines while maintaining structural integrity.
We are a manufacturing factory offering complete design, production, and installation services.
Contact us via email, phone, or messaging platforms for prompt response with competitive pricing.
Inspectors are welcome at any production stage, with live video options available.
China CT Steel Structure Co., Ltd (BY GROUP) specializes in steel structure design, manufacturing, and installation with 21 years of industry experience across 30 hectares of production facilities.
Our portfolio includes warehouses, workshops, high-rise buildings, agricultural structures, and prefabricated solutions. We prioritize quality packaging that saves clients time and labor during installation.
