Place of Origin:
China
Brand Name:
CT Steel Structure
Certification:
SGS
Model Number:
Multistorey86101
| Attribute | Value |
|---|---|
| Number Of Storeys | Multi Storey |
| Structure Type | Frame |
| Material | Steel |
| Maintenance | Low |
| Strength | High |
| Product Type | Steel Building |
| Aesthetics | Modern |
| Construction Time | Short |

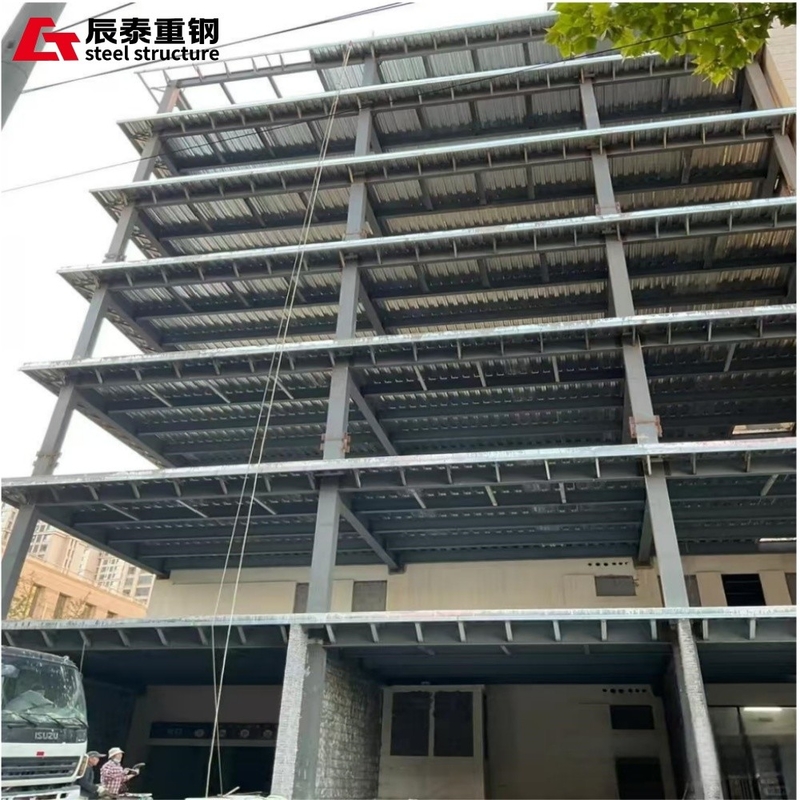

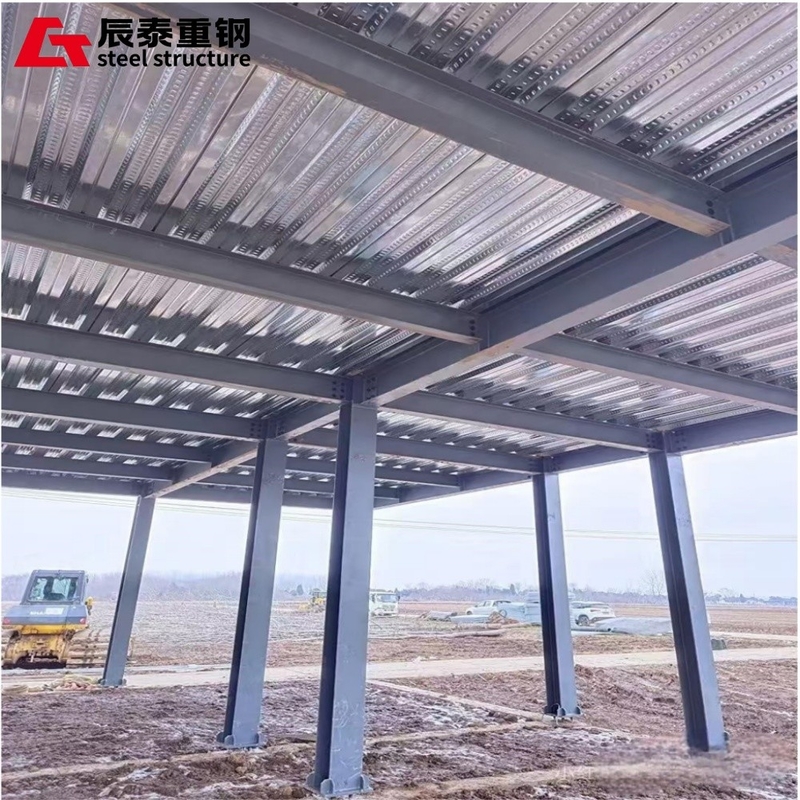

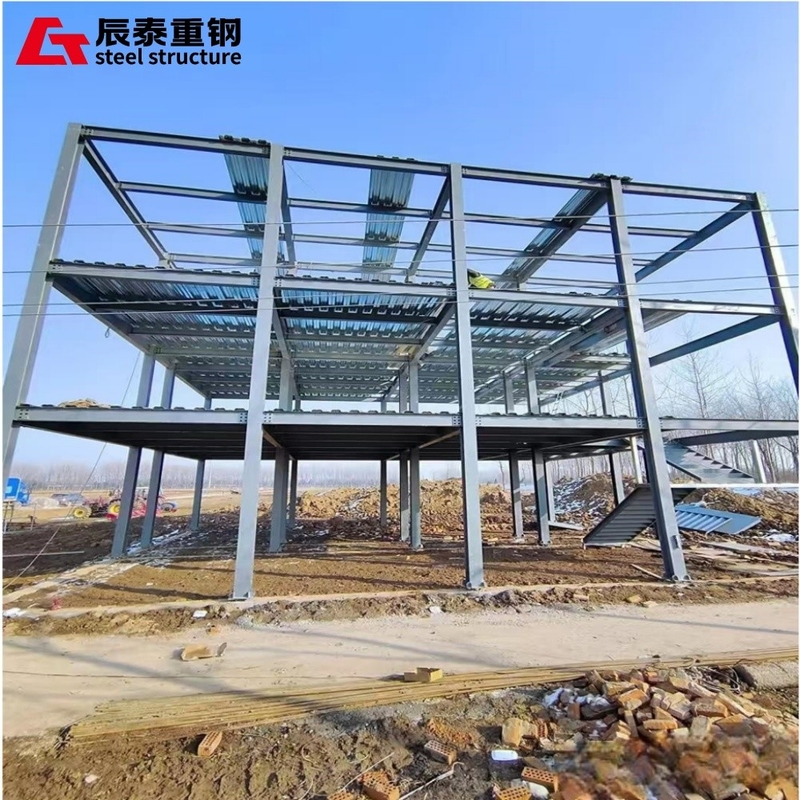

Our high-quality multi-storey steel structure buildings are designed for office and industrial use, typically featuring 4 to 6 floors. The steel construction provides exceptional strength-to-weight ratio, reducing foundation loads while offering superior seismic performance due to steel's inherent ductility.
| Name | Steel structure multi-storey building |
| Dimensions |
Length: 4000-15000mm (H beam) Thickness: Web plate 6-32mm, Wing plate 6-40mm Height: 200-1200mm |
| Color | Customizable to customer requirements |
| Minimum Order | 200 m² (width × length × eave height) |
The construction site is leveled and prepared for foundation work. Concrete foundations are poured with precise positioning for steel column installation points, ensuring strength and stability to support the entire structure.
Steel components undergo rigorous quality control including visual inspection, mechanical testing (tensile, impact), and chemical analysis to ensure compliance with project specifications before installation.
Factory fabrication includes cutting, welding, and drilling operations to produce structural elements (columns, beams, supports) with strict dimensional accuracy. All welds undergo non-destructive testing.
Steel columns are precisely positioned using cranes, aligned with foundation points, and temporarily supported before final bolting or grouting. Vertical alignment is meticulously verified.
Primary load-bearing beams are installed to form the structural framework, followed by secondary beams. All connections are secured through welding or high-strength bolting with proper torque specifications.
The completed structure undergoes comprehensive verification of alignment, levelness, and dimensional accuracy before all connections receive final tightening to specified torque values.
Our team of senior designers utilizes advanced modeling software to create customized solutions that optimize both structural performance and space utilization, balancing aesthetic and functional requirements.
We partner with leading steel mills to source high-quality materials that undergo rigorous testing. Our inventory includes specialized steels for diverse applications, ensuring optimal performance in all environments.
Our comprehensive logistics system ensures timely delivery with real-time tracking. Professional handling minimizes transit risks while optimizing site coordination for seamless project execution.
China CT Steel Structure Co., Ltd of BY GROUP is an established industrial group with over 15 years of experience in steel structure design, manufacturing, and installation. Our 106,560 m² facility produces a comprehensive range of steel buildings for diverse applications.
Our quality management system is certified to ISO 9001 standards. We provide comprehensive support for any quality concerns, with claims processed within specified timeframes upon receipt of proper documentation.
