Place of Origin:
China
Brand Name:
CT Steel Structure
Certification:
SGS
Model Number:
Multistorey86101
| Attribute | Value |
|---|---|
| Name | Steel Frame Multi Storey Buildings |
| Material | Steel |
| Maintenance | Low |
| Strength | High |
| Product Type | Steel Building |
| Aesthetics | Modern |
| Construction Time | Short |
| Apply | Easy to Apply |
| Toughness | Good Toughness |
| Weight | Light Weight |
In the industrial field, steel structure multi-storey buildings are often used as multi-storey industrial plants, with high bearing capacity to adapt to the placement of large-scale production equipment. Floors can be carefully planned according to the technological process - for example, electronic manufacturing enterprises can set up dust-free workshops on the upper floor while using the bottom layer for loading, unloading, and warehousing to accelerate logistics flow.
These buildings are constructed quickly, enabling enterprises to begin production rapidly. They can also be flexibly transformed to adapt to product upgrading and capacity expansion in later stages. In commercial applications, steel structure multi-storey buildings offer significant advantages with their large-span spaces ideal for shopping malls and centers, allowing flexible planning of open atriums and spacious business areas.
| Component | Specification |
|---|---|
| Dimensions (H beam) | Length: 4000-15000mm Thickness: web plate 6-32mm, wing plate 6-40mm Height: 200-1200mm |
| Color | Customizable |
| Minimum Order Quantity | 200 m² (width × length × eave height) |
| Main Components | Base: Cement and steel foundation bolts Main frame: H beam Material: Q235B, Q345B or custom |
| Purlin | C or Z purlin: Size from C120~C320, Z100~Z20 |
| Bracing | X-type or other type bracing made from angle, round pipe |
| Surface Treatment | Two layers of anti-rust painting or hot dip galvanized |
The construction site is cleaned and leveled to ensure proper conditions. Concrete foundations are poured according to design specifications, with accurate positioning for steel column installation holes or embedded bolts.
Steel meeting quality standards is purchased based on design specifications. Upon arrival, materials undergo rigorous inspection including visual checks, mechanical property testing, and chemical composition analysis.
Steel components are precision-cut, welded, and drilled in the factory according to design drawings. Dimensional accuracy is strictly controlled, with non-destructive testing performed on welds.

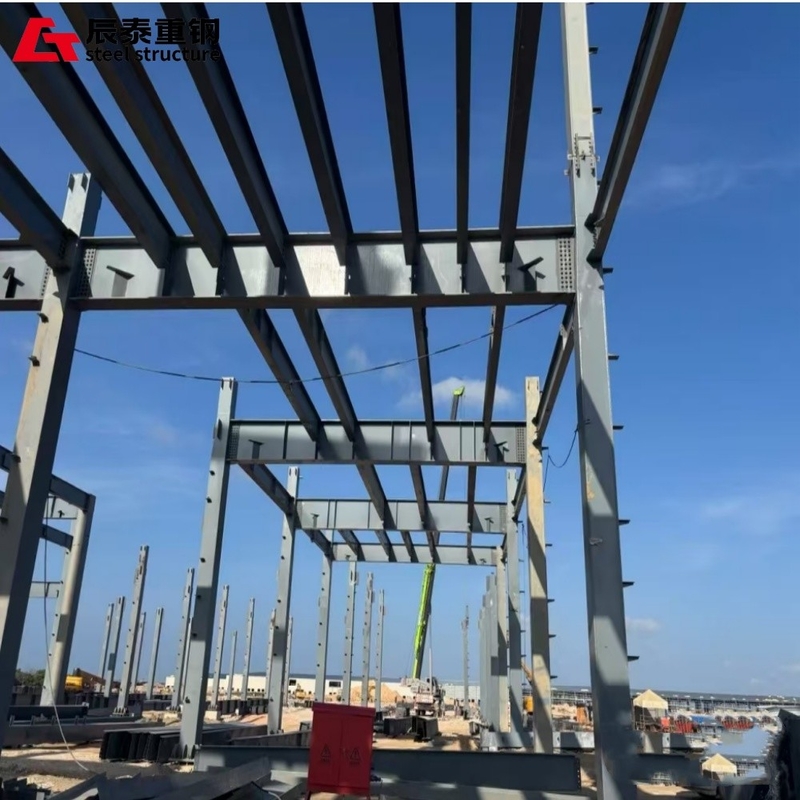

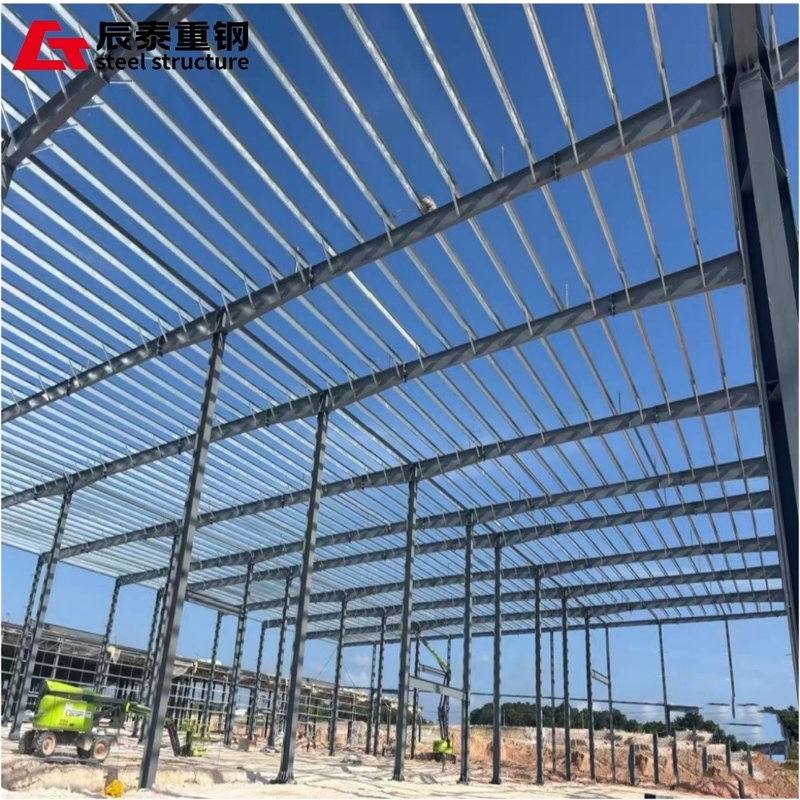

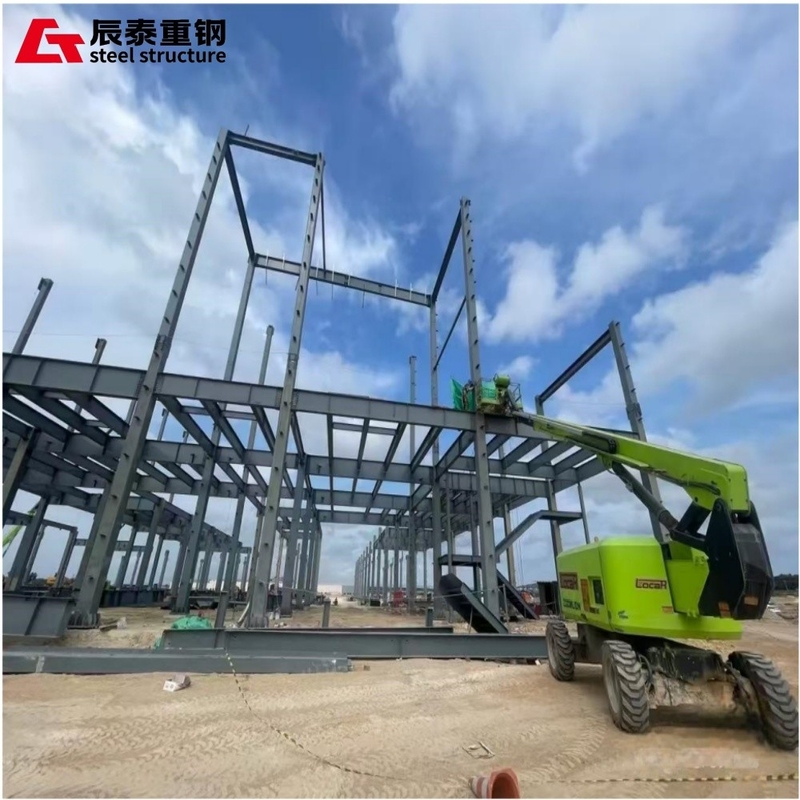

Columns are lifted into position using cranes, aligned with foundation holes, and temporarily supported before final bolting or grouting. Verticality is carefully monitored to ensure proper alignment.
Beams are lifted into place and connected to columns via welding or high-strength bolts. Levelness and camber are adjusted according to design requirements to ensure proper structural performance.
The entire structure is corrected as a unit, with all connection bolts tightened to specified torque values to create a stable structural system.
Design Excellence: Our senior designers use cutting-edge software to create customized solutions that optimize both structural performance and space utilization.
Material Quality: We source steel from reputable mills, with rigorous quality testing to ensure strength, toughness, and corrosion resistance meet high standards.
Efficient Logistics: Our professional transportation team carefully plans routes and uses advanced tracking technology to ensure timely, safe delivery of materials.
China CT Steel Structure Co., Ltd of BY GROUP is a comprehensive industrial group specializing in steel structure design, manufacture, and installation with over 15 years of experience. Our 106,560 square meter factory produces a wide range of steel structures including warehouses, workshops, high-rise buildings, schools, hotels, and specialized agricultural buildings.
