Place of Origin:
China
Brand Name:
CT Steel Structure
Certification:
SGS
Model Number:
ImpWall76101
| Attribute | Value |
|---|---|
| Name | IMP Walls |
| U-Factor | 0.062 |
| Installation Method | Vertical or Horizontal |
| Insulation Core | Polyisocyanurate |
| Panel Width | 42 inches |
| Sound Transmission Class | STC 26 |
| Fire Rating | Class A |
| Finish | Smooth |
| Joint Type | Concealed Fastener |
| Panel Length | 8 feet |
| Application | Exterior Walls |
| Color | White |
| R-Value | R-16 |
| Thickness | 2 inches |
| Material | Insulated Metal Panels |

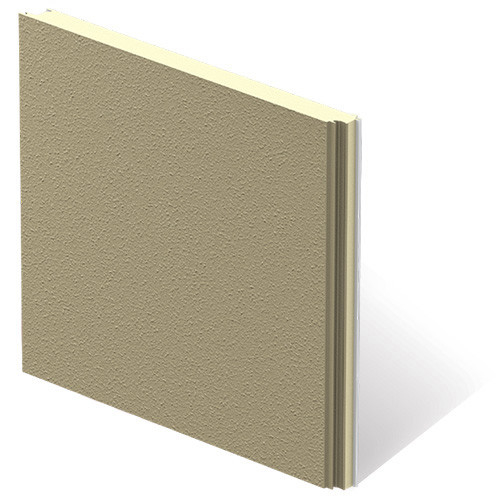

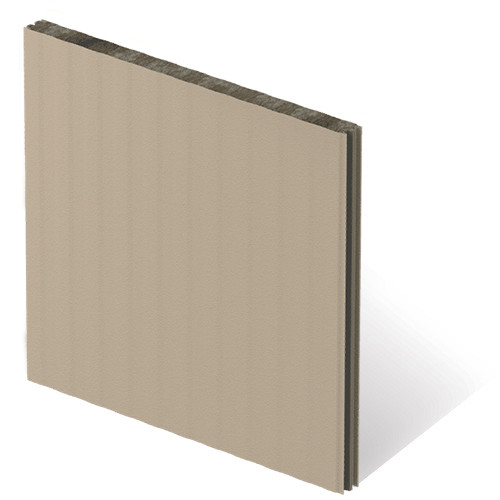

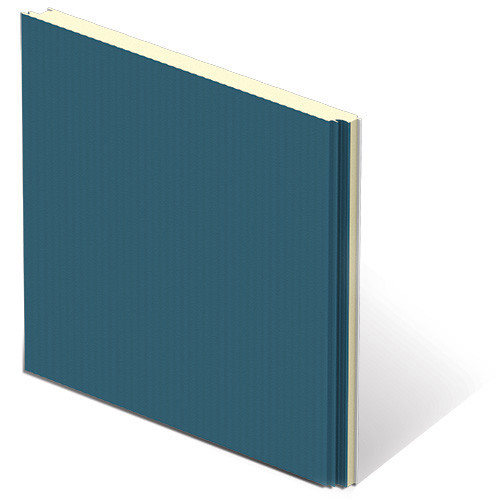

Insulated Metal Panel Walls PU Sandwich Panel Wall Polyurethane
Our Insulated Metal Panel Walls PU Sandwich Panel Wall Polyurethane represents a pinnacle in building insulation technology, offering an innovative and efficient solution for constructing energy-efficient buildings. This product integrates premium metal facings with a core of polyurethane (PU) foam, providing superior thermal performance, durability, and aesthetic appeal.
The PU sandwich panel system is designed to offer an all-in-one solution for exterior walls, combining high-performance insulation with robust metal cladding. This integration significantly reduces construction time and costs while enhancing energy efficiency. By creating a seamless, weather-resistant barrier, this product protects against various environmental elements such as heat, cold, moisture, and noise.
| Parameter | Specification |
|---|---|
| Panel Type | Insulated Metal Panel (IMP) |
| Core Material | Polyurethane (PU) Foam |
| Metal Facing | Galvanized Steel / Aluminum |
| Panel Thickness | 50mm, 75mm, 100mm, 150mm |
| Width | Standard Width: 1000mm |
| Length | Customizable up to 12m |
| Thermal Conductivity | λ ≤ 0.024 W/mK |
| Fire Rating | Class A (Non-combustible material) |
| Sound Transmission | STC ≥ 36 |
| Weight | Approximately 8-12 kg/m² depending on thickness |
| Color Options | Multiple standard and custom color options available |
