Place of Origin:
China
Brand Name:
CT Steel Structure
Certification:
SGS
Model Number:
Bracket 86909
| Attribute | Value |
|---|---|
| Cost | Affordable |
| Design | Custom |
| Flexibility | High |
| Weather Resistance | Strong |
| Size | Square metre |
| Materials | Steel |
| Intensity | High Intensity |

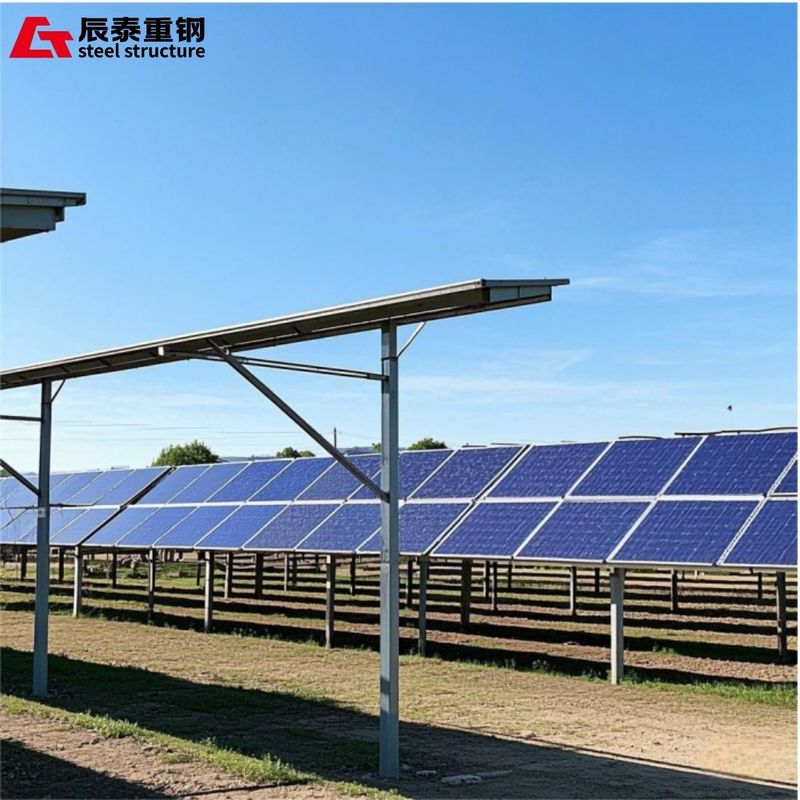

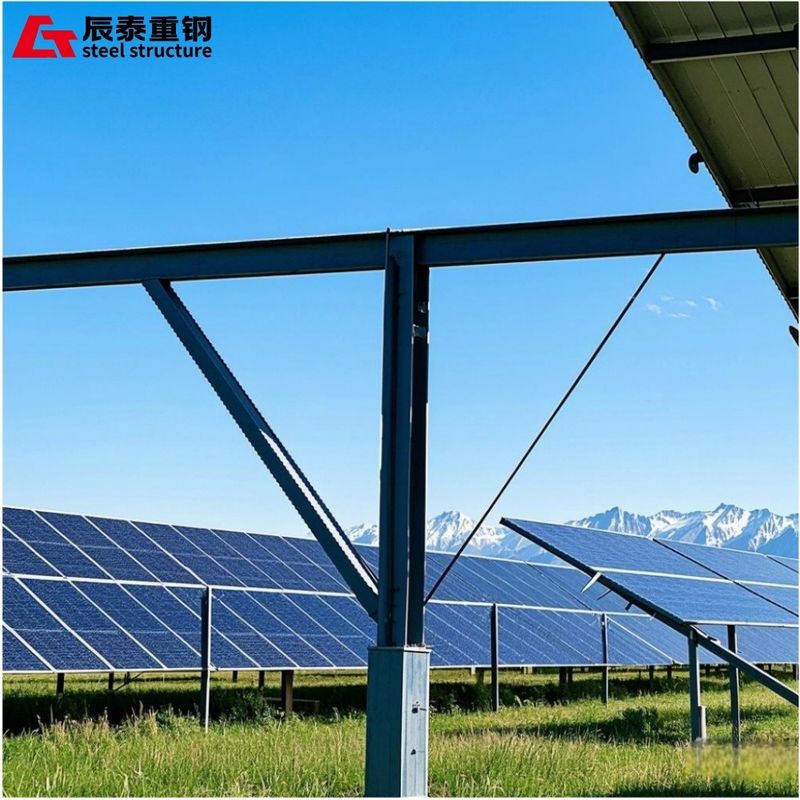

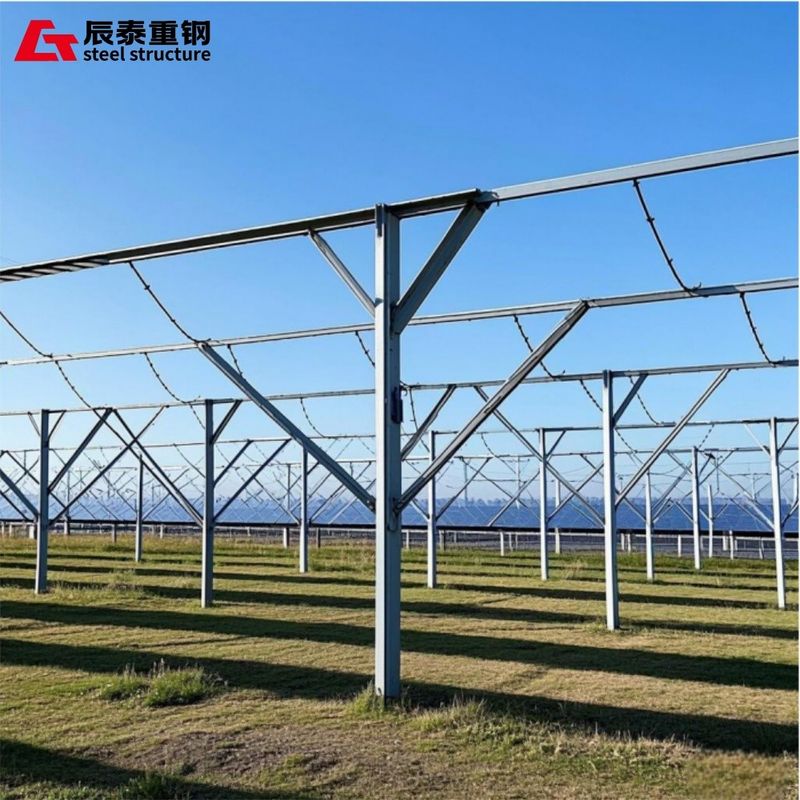

The steel structure bracket for photovoltaic panels is a critical component that ensures stable operation of solar arrays. Constructed primarily from welded or bolted steel sections including H-beams, channel steels, and angle steels, these brackets are engineered to meet specific photovoltaic power station design and environmental requirements.
Our structural design incorporates mechanical principles and practical considerations to withstand photovoltaic panel weight, wind loads, and snow loads. Surface treatments like hot-dip galvanizing provide superior rust protection, extending service life in demanding outdoor environments. When precisely installed, these brackets offer optimal solar panel positioning for maximum photoelectric conversion efficiency.
| Material Name | Specification | Unit | Usage | Remarks |
|---|---|---|---|---|
| Hot-rolled H-beam | H300*150*6.5*9 | Root | Main support frame structure | Material Q345B |
| Hot-rolled channel steel | [10 | Root | Auxiliary support and connection components | Material Q235B |
| Hot-rolled angle steel | L50*5 | Root | Reinforcing ribs and corner connections | Material Q235B |
| Steel plate | δ = 8mm | Square meter | Bracket base and connection node plates | Material Q345B |
| High-strength bolts | M20*80 | Set | Component connection and fixation | Grade 8.8 |
| Common bolts | M16*50 | Set | Partial temporary fixation and secondary connections | Grade 4.8 |
| Nuts | Matched with bolts | Piece | Used in conjunction with bolts | / |
| Washers | Matched with bolts | Piece | Disperse pressure and prevent nuts from loosening | / |
| Galvanize | DN | Mm | Anticorrosive treatment of bracket surface | Select type according to design requirements |
China CT Steel Structure Co., Ltd of BY GROUP is a comprehensive industrial enterprise specializing in steel structure design, manufacturing, and installation with over 21 years of experience. Our 300,000 square meter facility produces a wide range of steel structures including warehouses, workshops, high-rise buildings, agricultural facilities, and more.
Key Features:
We adhere to "Quality and service first" principles, committed to mutual development and project success.
Send your inquiry directly to us
