High Seismic Galvanized Steel Structure Building Anti Corrosion PV Steel Structure
Product Attributes
| Usage | Construction |
| Apply | Easy to Apply |
| Toughness | Good Toughness |
| Manufacture | Customized |
| Strength | Strong |
| Design | Customizable |
| Cost | Affordable |
| Material | Steel |
| Durability | High |
Product Description

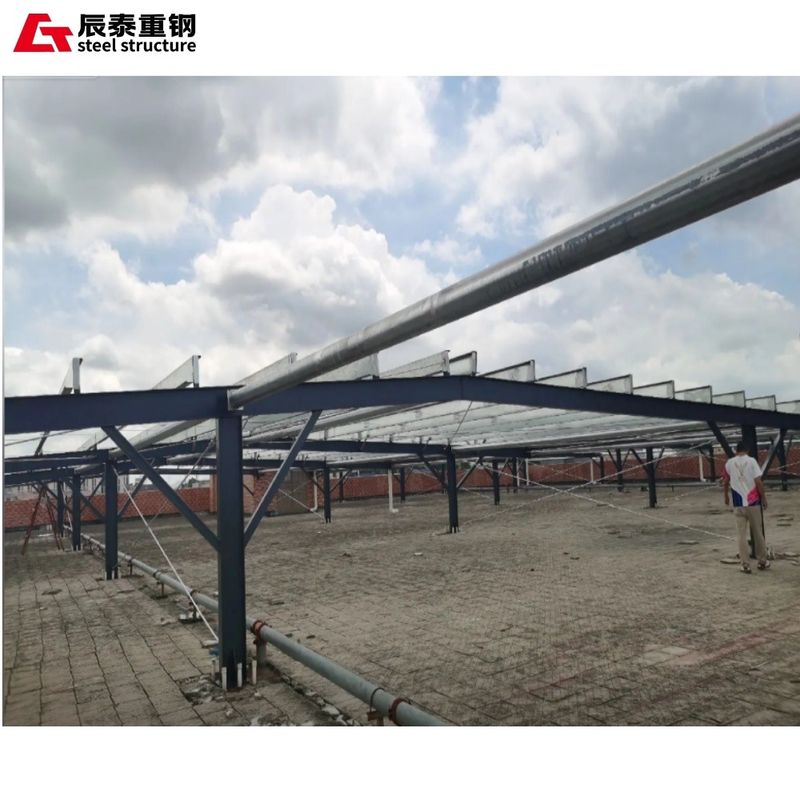

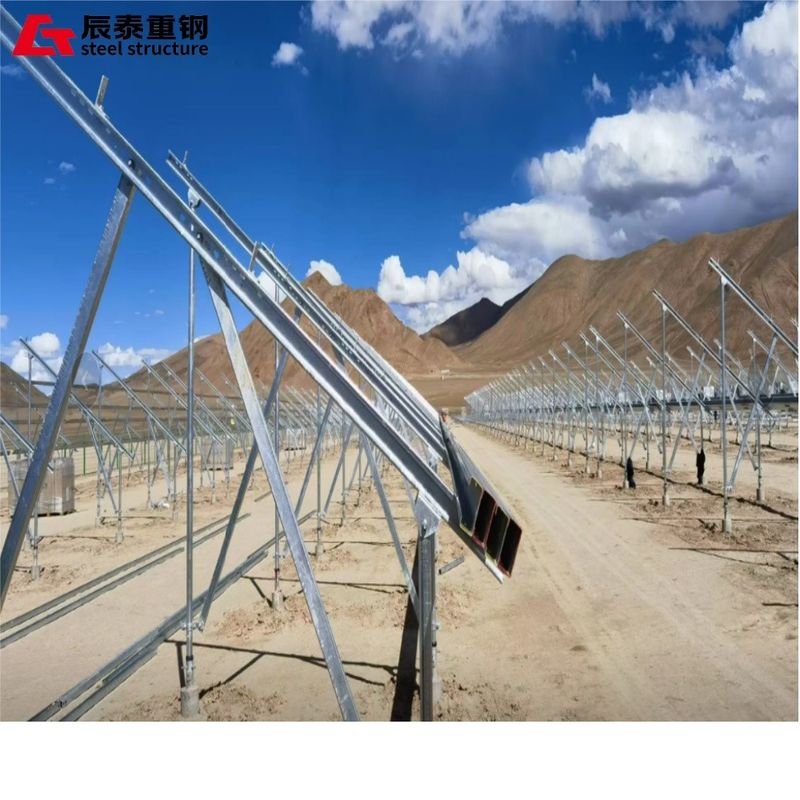

Our high seismic galvanized anti-corrosion photovoltaic steel structure bracket features a stable construction with reliable frame components including columns, main beams, and quilting. Designed to perform in various complex environments, it ensures photovoltaic module stability.
Available in diverse materials including aluminum alloy, hot-dip galvanizing, and zinc-aluminum-magnesium alloy to accommodate different climate and geological requirements. We offer both fixed and tracking mounts to suit varying lighting and terrain conditions.
The modular design enables easy installation and quick assembly. Ideal for large-scale photovoltaic power stations, agricultural-photovoltaic complementary projects, mining area redevelopment, and other specialized applications where stable solar panel support is essential for efficient energy conversion.
Material Specifications
| Material Name | Specification | Unit | Usage | Remarks |
| Hot-rolled H-beam | H300*150*6.5*9 | Root | Main support frame structure | Material Q345B |
| Hot-rolled channel steel | [10 | Root | Auxiliary support and connection components | Material Q235B |
| Hot-rolled angle steel | L50*5 | Root | Reinforcing ribs and corner connections | Material Q235B |
| Steel plate | δ = 8mm | Square meter | Bracket base and connection node plates | Material Q345B |
| High-strength bolts | M20*80 | Set | Component connection and fixation | Grade 8.8 |
| Common bolts | M16*50 | Set | Partial temporary fixation and secondary connections | Grade 4.8 |
| Nuts | Matched with bolts | Piece | Used in conjunction with bolts | / |
| Washers | Matched with bolts | Piece | Disperse pressure and prevent nuts from loosening | / |
| Galvanize | DN | Mm | Anticorrosive treatment of bracket surface | Select type according to design requirements |
Product Advantages
High Strength:
The steel structure bracket primarily uses high-strength steel that can withstand significant loads. In large-scale photovoltaic power stations, it supports extensive photovoltaic panel arrays while enduring wind loads, snow loads, and panel weight, ensuring system stability and safety.
Light Weight:
Steel's high strength-to-weight ratio makes our brackets significantly lighter than concrete alternatives. This facilitates transportation and installation, reduces costs, and minimizes foundation requirements - particularly beneficial for rooftop photovoltaic projects.
Excellent Durability:
With proper anti-corrosion treatments like hot-dip galvanizing and protective coatings, our steel structures resist environmental degradation. They maintain performance for decades, even in corrosive coastal environments, reducing long-term maintenance costs.
Our Capabilities
Our professional engineering team provides customized design solutions tailored to project requirements including load specifications, space constraints, and environmental conditions. We handle complex structures, special anti-corrosion needs, and unique architectural requirements.
Advanced production equipment and strict quality control ensure precision manufacturing. We implement comprehensive testing including non-destructive examination and weld inspection throughout production. Our ISO 9001 certified quality management system guarantees consistent excellence.
Company Profile
China CT Steel Structure Co.,Ltd of BY GROUP is a comprehensive industrial group specializing in steel structure design, manufacture, and installation with over 21 years of experience. Our 300,000 square meter facility produces:
- Steel structural warehouses and workshops
- High-rise steel buildings for commercial and institutional use
- Agricultural structures including barns and livestock housing
- Specialized structures like hangars, stadiums, and parking facilities
- Prefabricated buildings and container houses
- Supporting components including sandwich panels and steel sections
Our optimized packaging system using steel pallets reduces unloading time and labor costs. We provide detailed installation drawings, instructional videos, and on-site engineering support when needed. "Quality and service first" remains our guiding principle for mutual success.
Packaging & Shipping
- Standard components packed in plywood boxes
- Welded components protected with blanket/bubble-wrap
- Steel pallet packaging for efficient container loading
- Sandwich panels packed on steel pallets
- Comprehensive container load planning for site efficiency
- All equipment labeled in English
- Small equipment packed in cartons or plywood boxes
Frequently Asked Questions
