Place of Origin:
CT
Brand Name:
CT Steel Structure
Certification:
SGS
Model Number:
ImpWall76101
| Attribute | Value |
|---|---|
| R-Value | R-16 |
| Manufacturer | IMP Walls Inc. |
| U-Value | 0.06 |
| Thickness | 2 inches |
| Material | Insulated Metal Panel |
| Insulation Type | Polyisocyanurate |
| Width | 42 inches |
| Finish | Smooth |
| Length | 8 feet |
| Weight | 4.5 lbs/sq ft |
| Sound Transmission Class | STC 26 |
| Fire Rating | Class A |

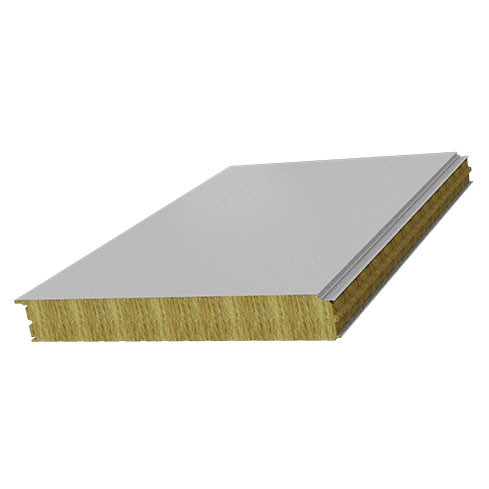

Our Fireproof Soundproof Panel IMP (Insulated Metal Panel) Rock Wool Walls Building Materials provide superior fire resistance and sound insulation for commercial and industrial construction projects. These panels combine durable metal facings with high-performance rock wool core for exceptional thermal and acoustic properties.
| Panel Type | IMP (Insulated Metal Panel) |
|---|---|
| Core Material | Rock Wool |
| Facing Material | Galvanized or Prepainted Steel |
| Panel Thickness | 50mm, 75mm, 100mm |
| Sheet Thickness | 0.4mm - 0.6mm (each side) |
| Fire Rating | Class A Non-Combustible |
| Sound Transmission Class (STC) | ≥ 45 dB |
| Thermal Conductivity | ≤ 0.04 W/m*K |
| Width | Customizable (Standard: 1000mm - 1200mm) |
| Length | Customizable (Max: 12m) |
| Color Options | Multiple standard and custom colors |
| Surface Finish | Smooth, embossed, corrugated |
These high-performance insulated wall panels are ideal for:
