Place of Origin:
China
Brand Name:
CT Steel Structure
Certification:
SGS
Model Number:
Bracket 86909
| Attribute | Value |
|---|---|
| Name | Bracket Steel Frame Building Construction Lightweight For Solar Photovoltaic |
| Type | Steel Structure Building Construction |
| Intensity | High Intensity |
| Weight | Light Weight |
| Durability | High |
| Apply | Easy to Apply |
| Fire Resistance | High |
| Construction Time | Short |
| Material | Steel |
| Cost | Affordable |
| Weather Resistance | High |
| Design Options | Customizable |

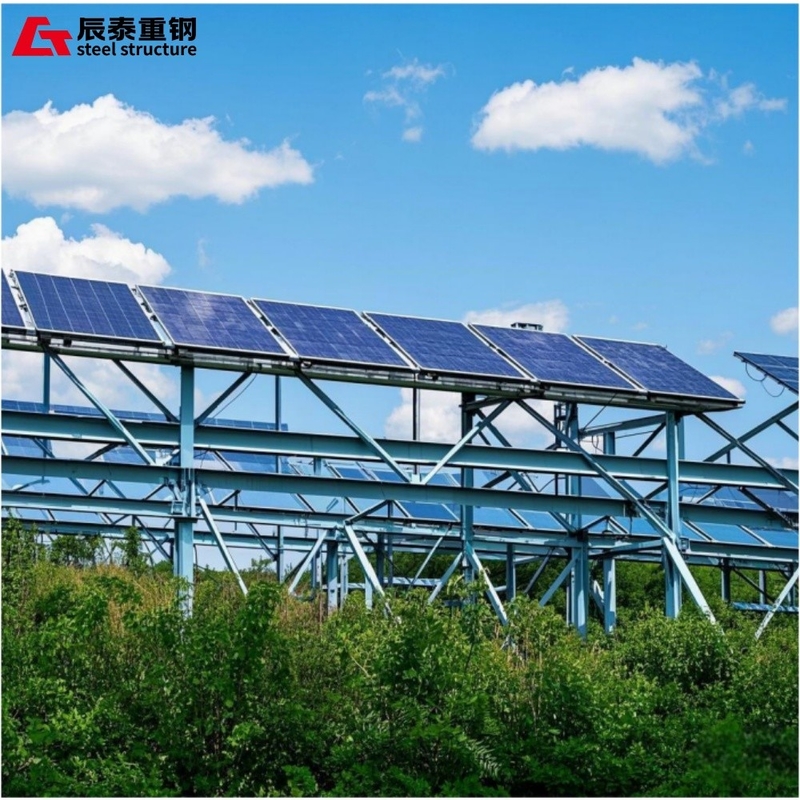

The steel structure photovoltaic bracket is a high-quality product specially designed for efficient and stable support of photovoltaic modules. As a key supporting part of the photovoltaic power generation system, its design considers various complex installation environments and different use needs, providing users with safe, reliable, convenient and durable photovoltaic mounting solutions.
| Material Name | Specification | Unit | Usage | Remarks |
|---|---|---|---|---|
| Hot-rolled H-beam | H300*150*6.5*9 | Root | Main support frame structure | Material Q345B |
| Hot-rolled channel steel | [10 | Root | Auxiliary support and connection components | Material Q235B |
| Hot-rolled angle steel | L50*5 | Root | Reinforcing ribs and corner connections | Material Q235B |
| Steel plate | δ = 8mm | Square meter | Bracket base and connection node plates | Material Q345B |
| High-strength bolts | M20*80 | Set | Component connection and fixation | Grade 8.8 |
| Common bolts | M16*50 | Set | Partial temporary fixation and secondary connections | Grade 4.8 |
| Nuts | Matched with bolts | Piece | Used in conjunction with bolts | / |
| Washers | Matched with bolts | Piece | Disperse pressure and prevent nuts from loosening | / |
| Galvanize | DN | Mm | Anticorrosive treatment of bracket surface | Select type according to design requirements |

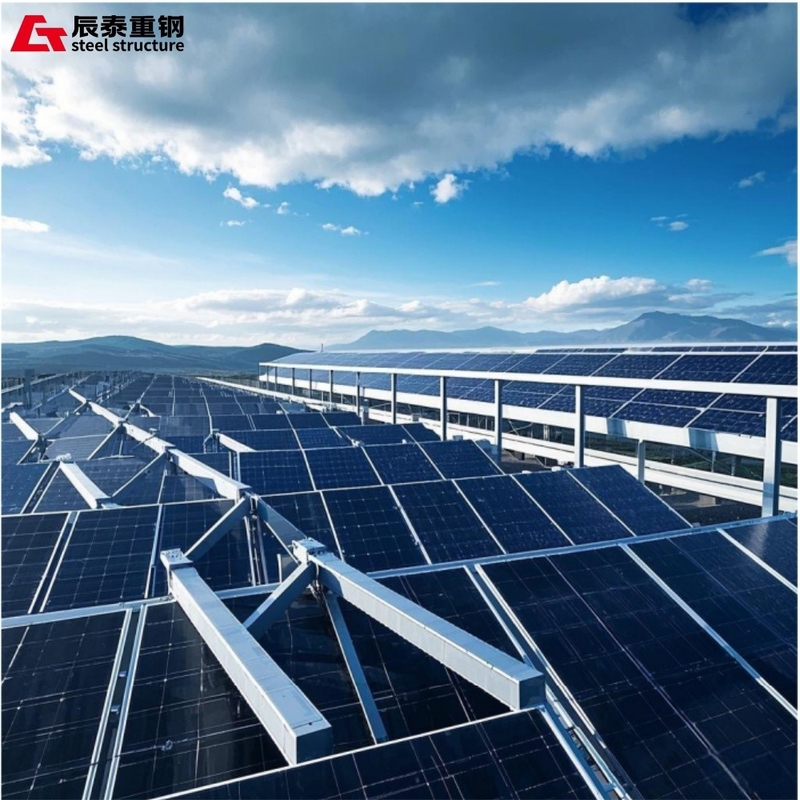

In large-scale photovoltaic power stations, our steel structure photovoltaic bracket is the preferred product due to its strong bearing capacity, excellent wind and seismic resistance, and efficient installation method. It meets strict requirements for stability, reliability and economy, providing a solid foundation for long-term efficient operation.
The lightweight design and flexible installation method make our brackets easily adaptable to various industrial plant roofs, enabling rapid installation and stable operation of photovoltaic systems without affecting plant structure safety, helping enterprises reduce energy costs and improve efficiency.
With beautiful design, simple installation and reliable performance, our steel structure photovoltaic brackets are ideal for residential rooftop photovoltaic systems, enabling green energy self-sufficiency and economic benefits.
Our professional design team creates customized solutions based on detailed equipment parameters and installation site conditions, ensuring optimal support and environmental harmony.
Rigorous production processes and quality control systems ensure component accuracy and quality at every stage.
We develop scientific transportation plans considering size, weight, quantity and delivery location, ensuring efficient and safe delivery.
China CT Steel Structure Co.,Ltd of BY GROUP is a comprehensive industrial group specializing in steel structure design, manufacture and installation with over 21 years of experience. Our factory covers approximately 300,000 square meters.
All parts are packed on steel pallets for efficient container loading and unloading, saving time and labor costs.
We provide detailed materials lists and packing lists showing quantities, part numbers, and container information.
We supply detailed installation drawings, videos, and can send engineers for on-site assistance.
Our company's development goal is "Quality and service first". We look forward to developing together and winning more projects!
