Place of Origin:
China
Brand Name:
CT Steel Structure
Certification:
SGS
Model Number:
Bracket 86909
| Type | Steel Structure Building Construction |
| Weather Resistance | Strong |
| Size | Square metre |
| Materials | Steel |
| Intensity | High Intensity |
| Structure | Steel Structure |
| Strength | Strong |
| Installation | Easy and quick |
| Usage | Construction |

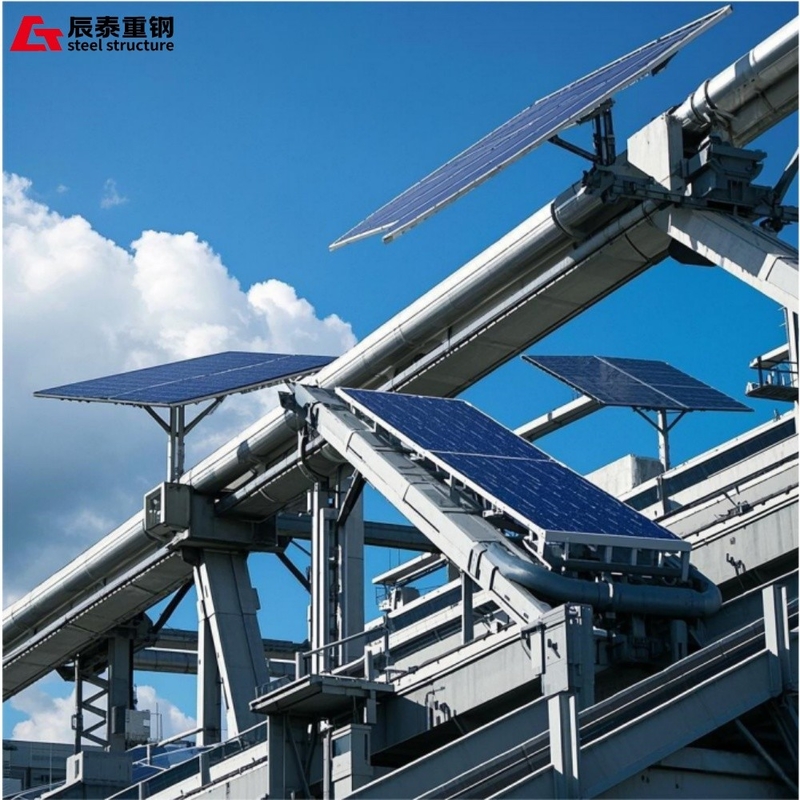

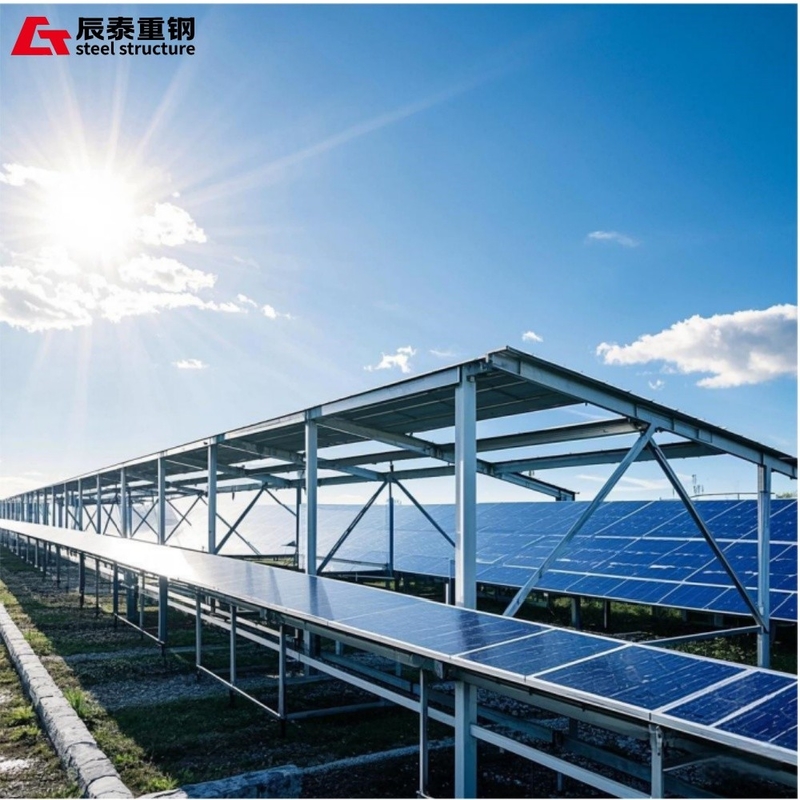

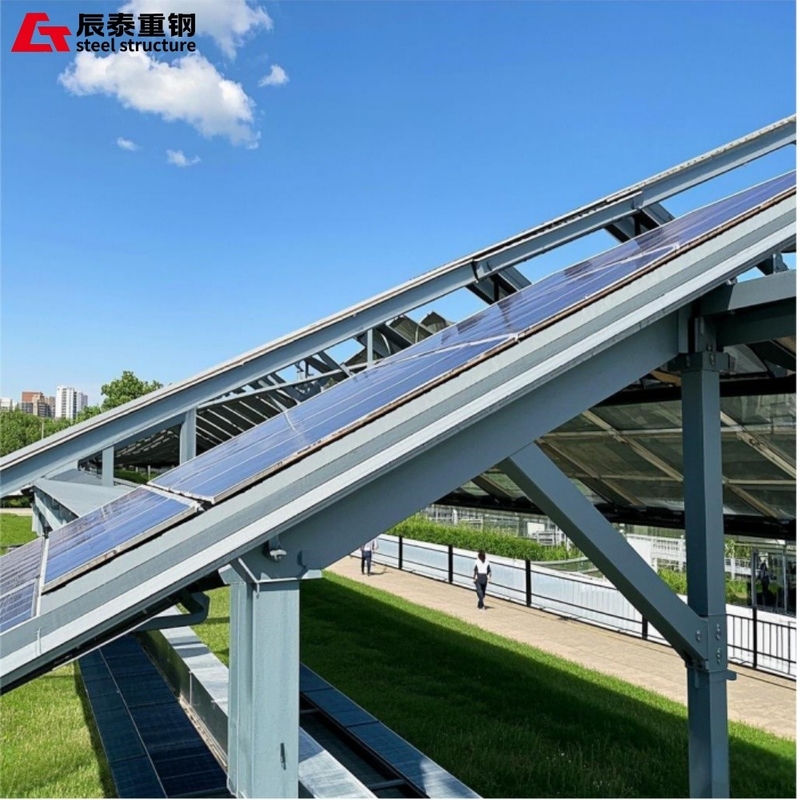

Our steel structure supports are ideal for both large-scale ground-mounted photovoltaic power stations and distributed rooftop solar installations:
| Material Name | Specification | Unit | Usage | Remarks |
|---|---|---|---|---|

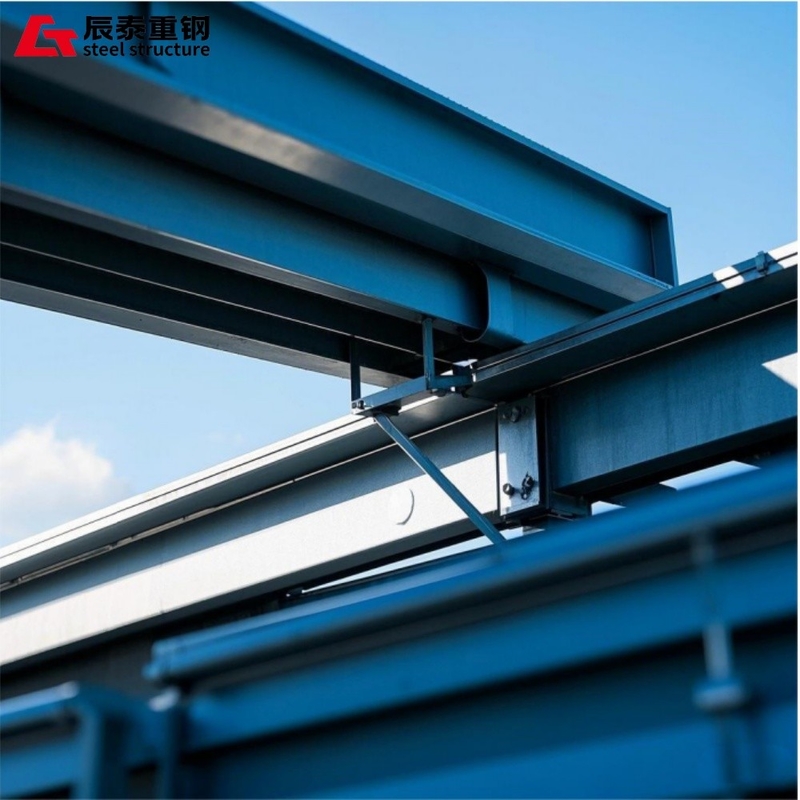

| Hot-rolled H-beam | H300*150*6.5*9 | Root | Main support frame structure | Material Q345B |
| Hot-rolled channel steel | [10 | Root | Auxiliary support and connection components | Material Q235B |
| Hot-rolled angle steel | L50*5 | Root | Reinforcing ribs and corner connections | Material Q235B |
| Steel plate | δ = 8mm | Square meter | Bracket base and connection node plates | Material Q345B |
| High-strength bolts | M20*80 | Set | Component connection and fixation | Grade 8.8 |
Our team of experienced engineers provides customized design solutions tailored to your specific project requirements:
As part of BY GROUP, we are a comprehensive industrial group with over 21 years of experience in steel structure design, manufacturing, and installation across our 300,000 square meter facility.
For specific questions about our solar panel steel frame building solutions, please contact our technical support team.
